TTV Butterfly control valve

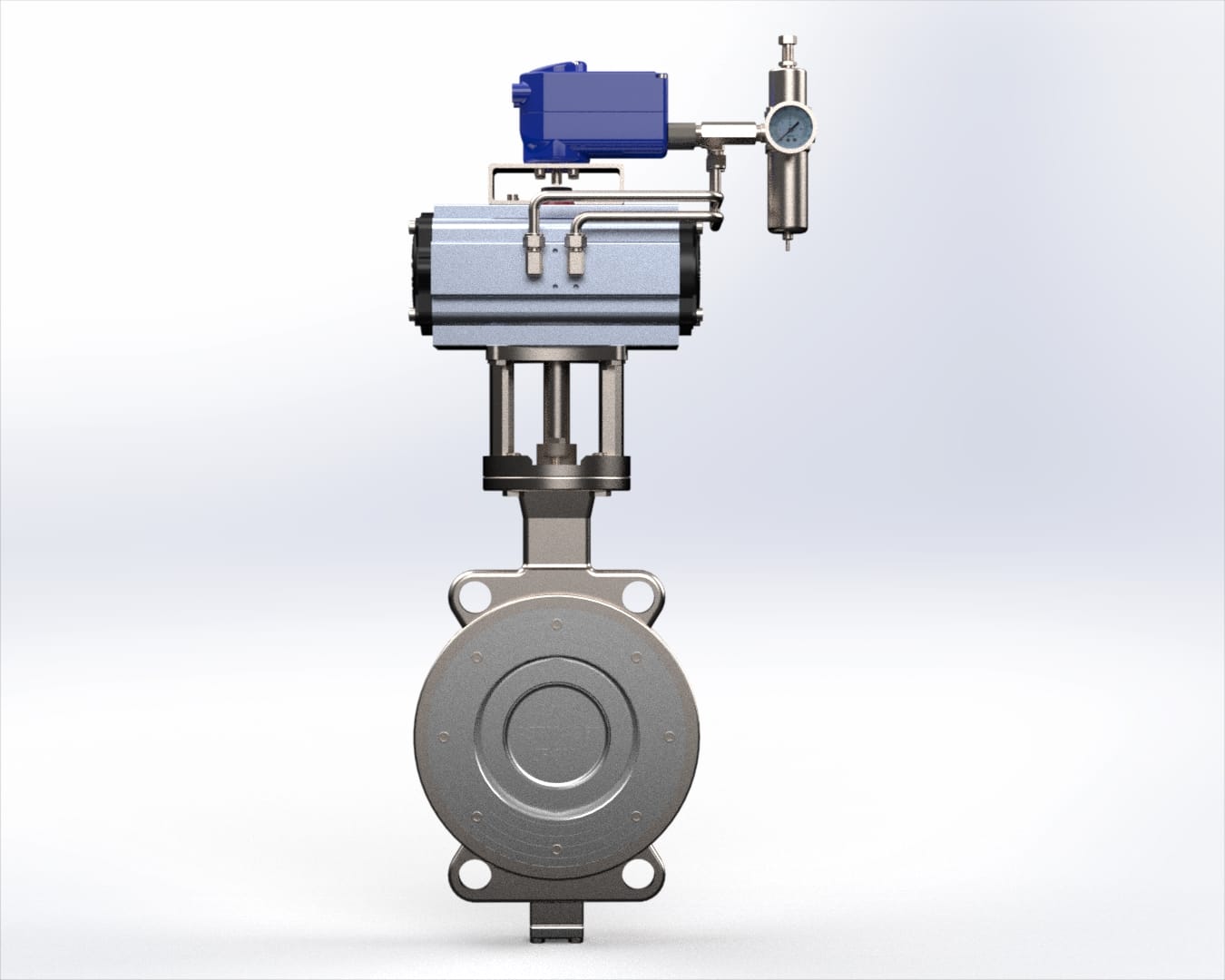

TTV (Spain) Double eccentric butterfly control valve – 14″

TTV Butterfly control valve
Body: ASTM A216 WCB; class 150
Disc: ASTM A351 CF8M
Leakage rate: class VI
Gland packing: PTFE
with API 598 test and API 609 standard Connection wafer type ANSI150
with “Actreg” (Spain) single acting pneumatic actuator
Model: ASR2100
Body: Hard anodized aluminium
Actuator seal: NBR
Air supply: 5 barg
Action: air to close / air fail to open
with “Foxboros” Intelligent positioner Model: SRD998-HBD0-B0S-1TA17-A1
Input and output: 4-20 mA with Hart
Air connection: 1/4″ NPT(F) Cable entry: 1/2″ Enclosure: Intrinsically safe EE xia
With”ASCO” Air Filter Regulator
Filtration/port size: High Flow 1/4 NPT 5 μm Pressure gauge : 316 SS Body Material : AISI 316L SS
Brand TTV (SPAIN Origin)
